16Port GbE Switch Module

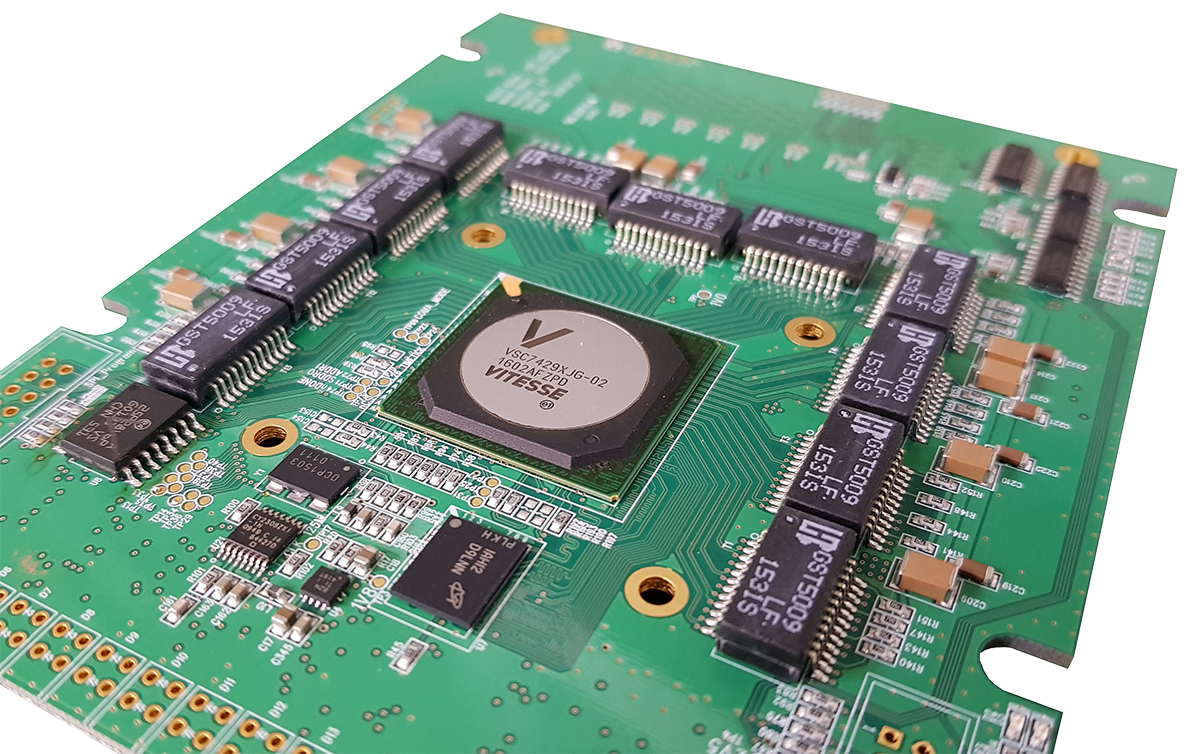

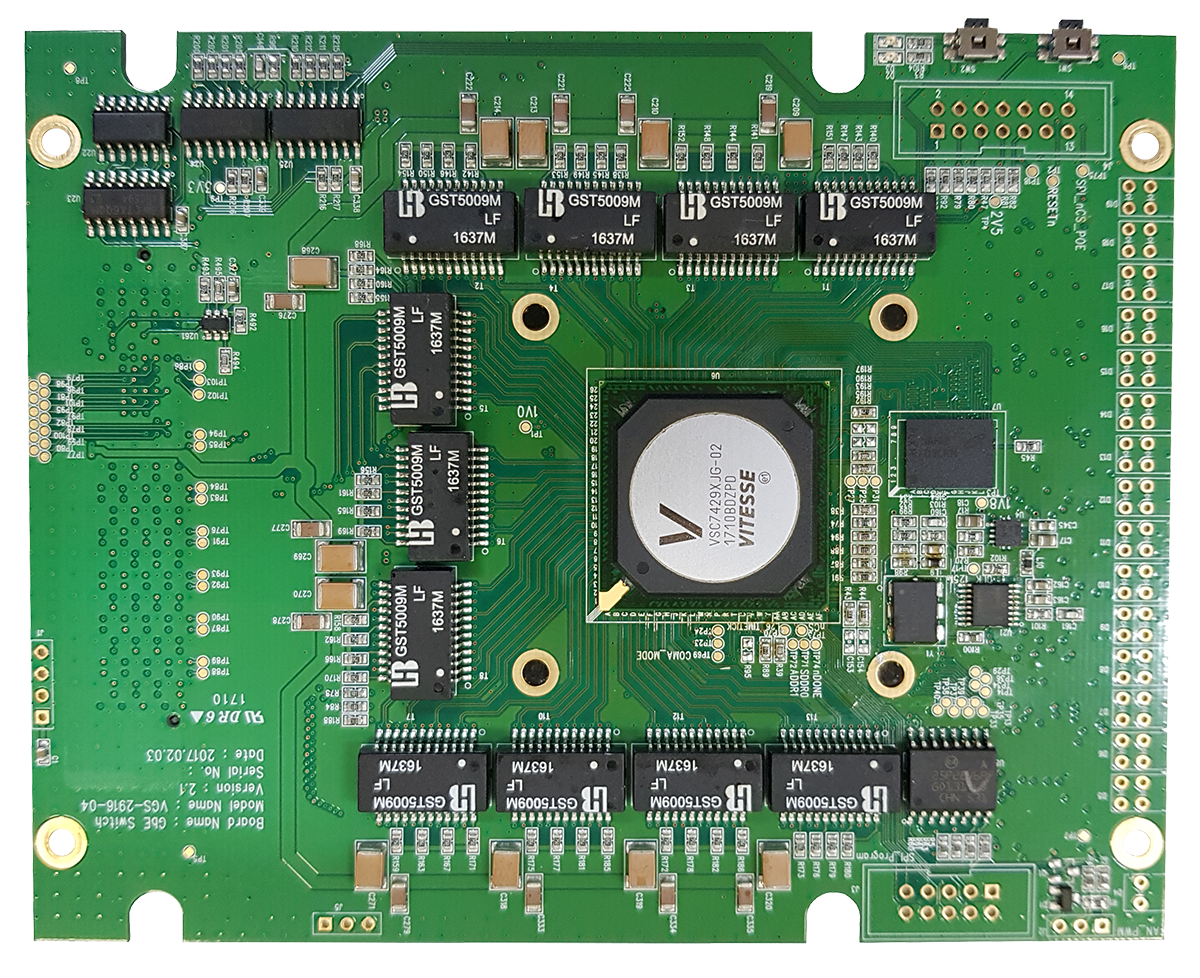

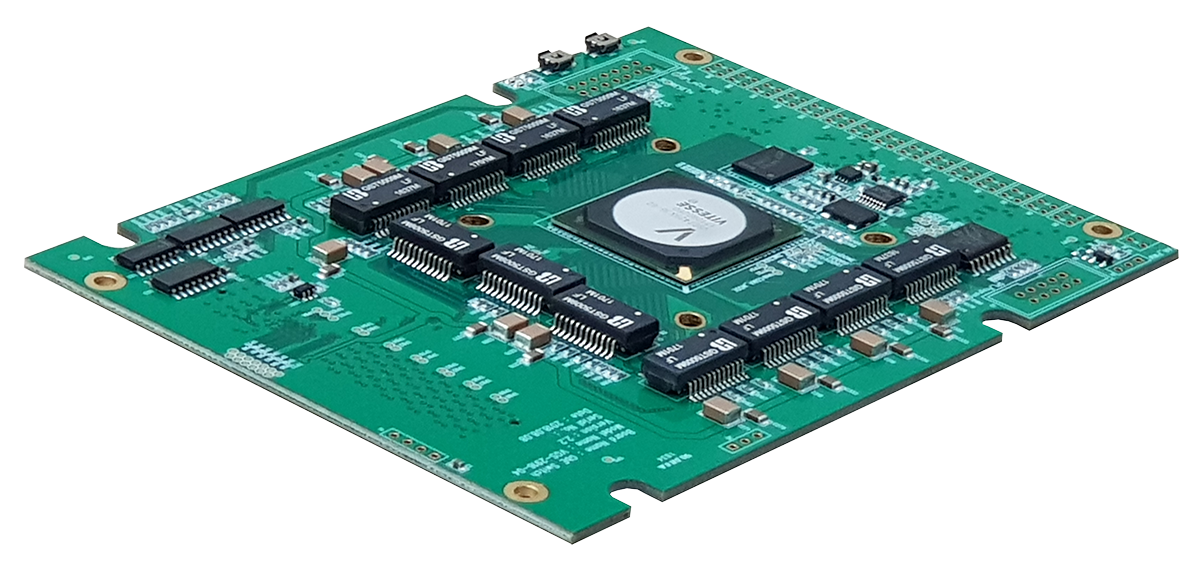

16Port Gigabit Managed Carrier Switch Mezzanine Board VGS-2916
VisionWare Tech’s VGS-2916-04/GbE 16-Port Managed Carrier Ethernet Switch provides high density, high port count, Carrier Grade Ethernet switching capabilities in an extremely small embedded form factor.
Excellent for any space constrained, mission-critical application needing an embedded high-density/high-port count managed Ethernet Switch.
* Features and Descriptions
Ethernet Switch Engine
– Vitesse VSC7429 Carrier Grade Ethernet Switch Chipset A powerful embedded 416 MHz RISC 32-bit CPU with DDR2 external memory and DMA-based frame extraction and insertion supports timing over packet, Ethernet OAM, and performance monitoring.
Ethernet PHYs
– 12 x Cu PHY Ports from Vitesse VSC7429 Switch Engine.
Memories
– 1Gb DDR2 SDRAM (125MB) 128Mb Serial NOR Flash (16MB)
Ports
– 11 x Gigabit Ethernet (10/100/1000 Mbps ) Copper Ports, 1x 1000BT, 4x Serdes/SGMII
Magnetics
– On-board Gigabit Magnetics for all 11 Ports (No external Magnetics required) Designed for Long-haul Gigabit Ethernet (10/100/1000 Mbps) applications.
I/O Connectors
– Ethernet: 1 x High-Density Board-to-Board Mezzanine Connector Contain 16 Gigabit Ports Connectors can be mated directly to breakout boards, Power and Management. Molex 45971-4115
Layer 2 Switching
– 802.1Q VLAN switch with 8K MACs and 4K VLANs
– Push/pop up to two VLAN tags
– IPv4/IPv6 multicast
– Policing with storm control and MC/BC protection
– RSTP and MSTP support
– Hardware and software-based learning
– Link aggregation (IEEE 802.3ad)
– Independent and shared VLAN learning (IVL, SVL)
– Jumbo frame support
Management Access
– Web Interface
– CLI via Serial(TTL)
– Software API
– SMNP
Indicator LEDs
– 2 LEDs per port (available through external connector) Status LEDs
Standalone Operation
– Switch can be used as a standalone unit OR it can be paired with an embedded SBC OR a Board in System Unit can be interconnected several Processing Boards and I/O Boards.
Input Voltage
– +5V to 14V Input Range from Mezzanine Connector
Power Consumption
– Idle: 0.4A, 4.8W
– Typical: 0.65A, 8W
– Max: 0.8A, 9.6W (with +12V input)
Dimensions
– 136mmx 108mm Tallest Top Side Component: Heatsink 14mm, Totally 21mm
Weight
– 1200g
MTBF
– 10years
Operating Temp
– -40°C to +85°C (chipset rated to +125°C thermals)
Warranty and Support
– Lifetime Warranty and Free Technical Support

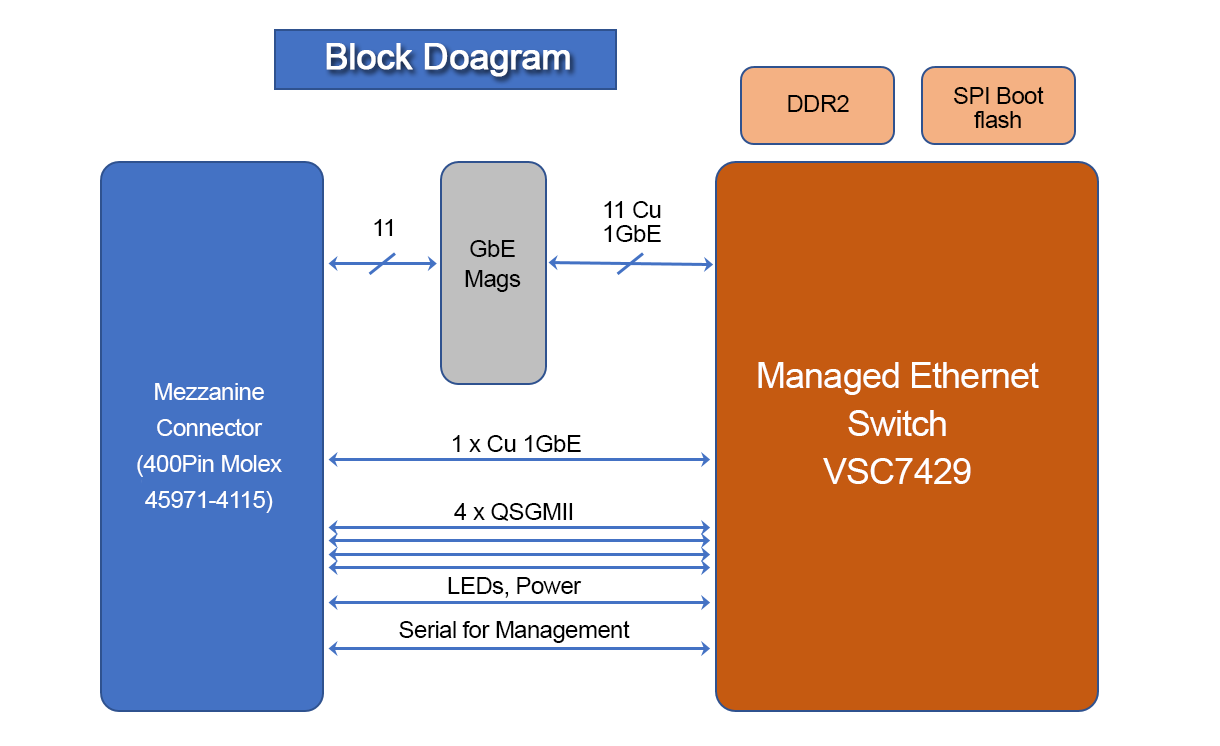

* Block Diagram
16Port(1x 12Port + 4x 1Port) sRIO Switch

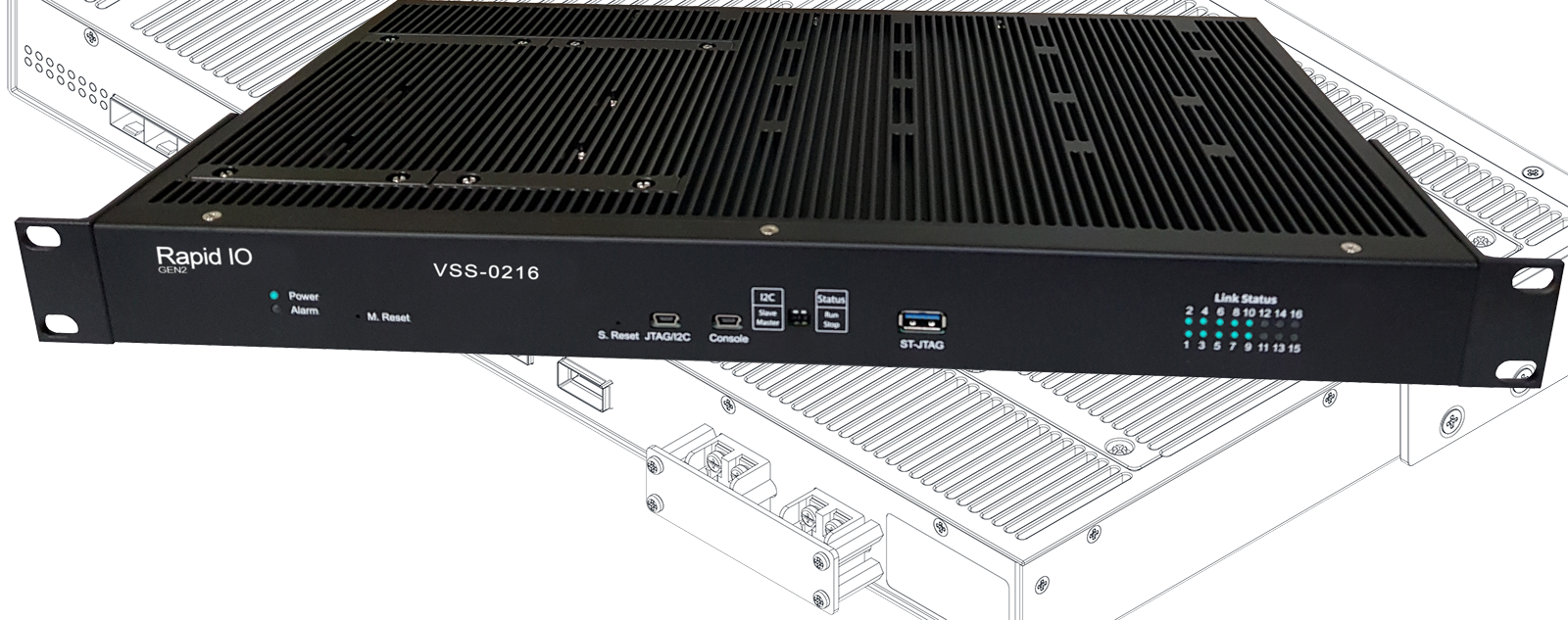

SRIO, 16 Port GEN2 RapidIO Switch Unit
(VSS-0216)
VisionWare Tech’s VSS-0216/SRIO 16-Port RapidIO Switch provides high port count, high-speed sRIO switching capabilities in an 1U 19inch Rack mountable.
Excellent for any High-speed constrained, mission-critical application needing an ruggid environment and high-port count sRIO Switch.
* Features & Descriptions
sRIO Switch Engine
– IDT 80HCPS1616/ full and non-blocking bandwidth of 80Gbps for up to 16ports Gen2 RapidIO switch chip.
RapidIO ports
– 12 bidirectional 1x sRIO lanes, 1 bidirectional 4x sRIO lane
– Port speeds selectable: 6.25, 5, 3.125, 2.5, or 1.25 Gbaud
– Support Level I defined short or long haul reach, and Level II defined short-, medium-, or long-run reach for each PHY speed
– Error Management Extensions support
– Software-assisted error recovery, supporting hot swap
Switch
– 80 Gbps peak throughput, Non-blocking data flow architecture
– Configurable for Cut-Through or Store-and-Forward data flow
– Very low latency for all packet lengths and load conditions
– Internal queuing buffer and retransmit buffer
– Standard transmitter- or receiver-controlled flow control
– Global routing or Local Port routing capability
– Supports up to 40 simultaneous multicast masks, with broadcast
– Performance monitoring counters for performance and diagnostics analysis.
Per input port and output port counters
I/O Connectors
– 12 1x SFP ports and 1 4x QSFP port
Cooling
– Conduction cooling with AL Enclosure
Management Access
– Serial via USB
– CLI
Local Controller
– STM32 ARM for management and port indicator
Standalone Operation
– Switch can be used as a standalone unit OR it can be paired with an embedded SBC OR a Board in System Unit can be interconnected several Processing Boards and I/O Boards.
Input Voltage
– 90~275VAC 47~60Hz or 100~250VDC, redundancy dual Power
Power Consumption
– Idle: 5W Typical: 15W Max: 20W (with AC input)
Dimensions
– 1U height, 19inch width, depth : 280mm
Weight
– 8kg
MTBF
– 10years
Operating Temp
– -40°C to +85°C (chipset rated to +125°C thermals)
Warranty and Support
– Lifetime Warranty and Free Technical Support
* Block Diagram
